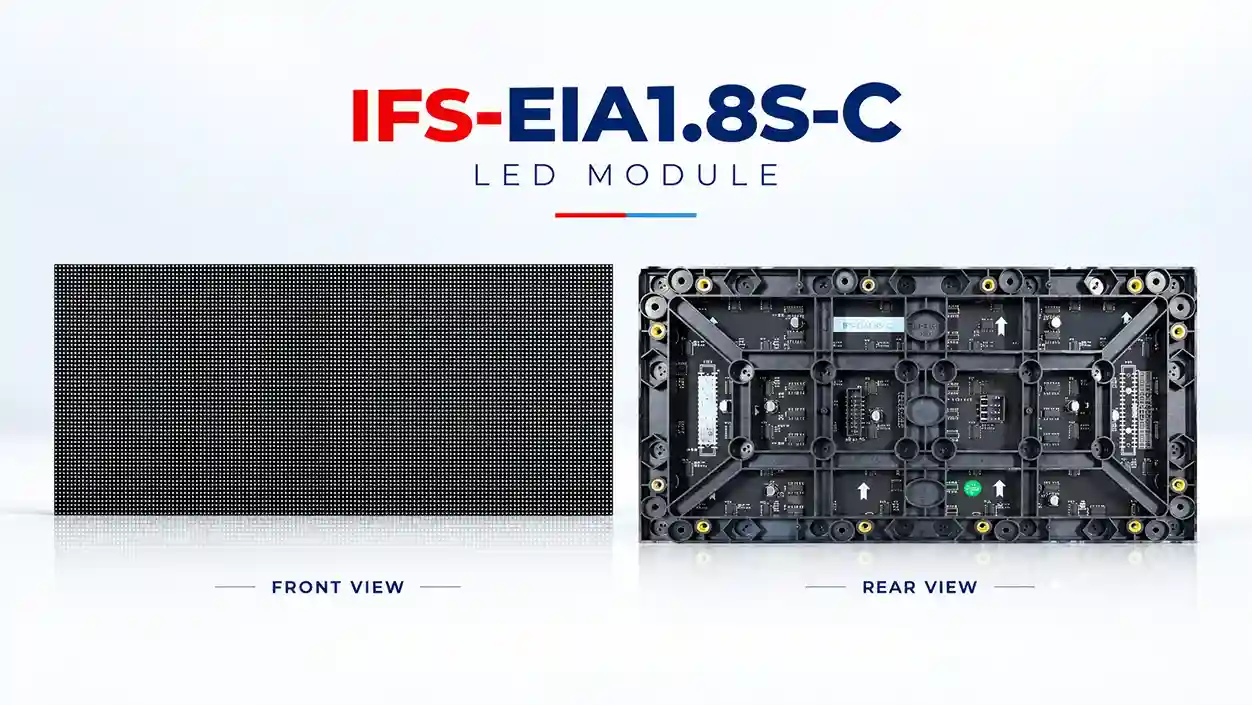

Dahua IFS-EIA1.8S-C P1.8 Indoor LED Module
The Dahua IFS-EIA1.8S-C is a P1.8 fine-pixel-pitch indoor LED module designed for high-definition indoor LED display applications. It features a 1.86 mm pixel pitch, 320 × 160 mm module size, approximately 288,906 dots/m² pixel density and a 3,840 Hz refresh rate for sharp, close-range indoor display performance.
Get Free EstimateDahua IFS-EIA1.8S-C LED Module
The Dahua IFS-EIA1.8S-C is a P1.8 fine-pixel-pitch indoor LED module designed for high-definition indoor digital display installations. Its 1.86 mm pixel pitch and high pixel density make it suitable for indoor LED screens viewed at very close range, such as control rooms and premium retail displays.
Module uses SMD LEDs with a 172 × 86 pixel resolution and 1R1G1B configuration on the same 320 × 160 mm form factor used across Dahua's indoor E-Series range. It also provides a wide viewing angle and supports point-by-point correction to help maintain consistent brightness and colour across the display.
Key Features of IFS-EIA1.8S-C
1.86mm Fine Pixel Pitch
The 1.86 mm pixel pitch is suitable for indoor LED displays viewed at very close range, delivering sharper detail than standard P2 or P2.5 modules.
High Indoor Brightness
The module provides brightness suited to standard indoor lighting conditions for clear, comfortable viewing.
3,840Hz Refresh Rate
A 3,840 Hz refresh rate supports smooth visual reproduction for dynamic content and video displayed on LED screens.
SMD LED Technology
The IFS-EIA1.8S-C uses SMD LEDs with a 1R1G1B configuration for full-colour LED display applications.
High Pixel Density
An approximately 288,906 dots/m² pixel density provides the pixel configuration required for fine-pitch, close-viewing indoor LED displays.
Wide Viewing Angle
A 140° horizontal and vertical viewing angle helps maintain clear visibility across a broad viewing area.
Point-by-Point Correction
Point-by-point correction helps improve brightness and colour uniformity across the LED display.
Indoor LED Module
The IFS-EIA1.8S-C is designed for indoor LED display applications and standardised cabinet installations, sharing the same 320 × 160 mm module size as Dahua's other E-Series indoor modules.
| Model | IFS-EIA1.8S-C |
|---|---|
| Product Type | P1.8 Indoor Full-Color LED Module |
| Pixel Pitch | 1.86mm (nominal P1.8) |
| Module Size | 320 × 160mm |
| Pixel Density | ≈288,906 dots/m² |
| LED Specification | SMD |
| Pixel Resolution | 172 × 86 dots |
| Pixel Configuration | 1R1G1B |
| Best Viewing Distance | ≥1.8m |
| Viewing Angle | 140° H / 140° V |
| Brightness | 400–600 cd/m² *(verify exact figure against datasheet)* |
| Working Voltage | DC 5V |
| Driving Device | Constant Current Driver |
| Refresh Frequency | ≥3,840Hz |
| Lifespan | 100,000 hours |
| Operating Environment | Indoor |
Applications of Dahua EIA1.8S LED Modules
Control Rooms & Command Centres
Fine-pitch indoor LED video walls for monitoring centres, control rooms and command centres requiring very close-range clarity.
Premium Retail & Showroom Displays
Indoor LED displays for flagship retail stores and showrooms where viewers are close to the screen.
Conference & Meeting Room Displays
High-definition indoor LED displays for boardrooms and executive meeting spaces.
Broadcast & Studio Displays
Indoor LED backdrops and displays for broadcast studios requiring fine detail on camera.
Lobby & Reception Displays
Premium indoor digital signage for building lobbies and reception areas.
Exhibition & Event Displays
Indoor LED screens for exhibitions and conferences where close-up image quality matters.
IFS-EIA1.8S-C Supplier in Dubai, UAE
Elite Infotech LLC supplies the Dahua IFS-EIA1.8S-C LED module in Dubai, UAE for businesses, contractors, system integrators and LED display projects.
The IFS-EIA1.8S-C can be used as part of a complete indoor LED display configuration. We can help you determine the appropriate module and screen configuration based on the required screen size, pixel pitch, viewing distance, brightness and installation environment.
Looking for the Dahua IFS-EIA1.8S-C in Dubai? Contact Elite Infotech LLC for product availability, pricing, and project requirements.
Get IFS-EIA1.8S-C in Dubai
Looking for the Dahua IFS-EIA1.8S-C P1.8 LED module in Dubai, UAE? Share your required screen size, installation location and application with our team. We can help you determine the appropriate LED display configuration for your project.
Share your required screen size, installation location and application, and our team can help you determine the appropriate LED display configuration.
Contact Us TodayGet In Touch With Us!
Phone
Address
Elite Infotech LED Screens in Dubai, 69H7+H7F – Umm Ramool – Dubai – United Arab Emirates
F.A.Q.
What is the Dahua IFS-EIA1.8S-C LED module?
The Dahua IFS-EIA1.8S-C is a P1.8 fine-pixel-pitch indoor LED module designed for high-definition indoor LED displays. It features a 1.86 mm pixel pitch, SMD LEDs, 320 × 160 mm module size and a high pixel density.
What is the pixel pitch of the Dahua IFS-EIA1.8S-C?
The Dahua IFS-EIA1.8S-C has an actual pixel pitch of 1.86 mm, marketed under the P1.8 naming convention. This makes it suitable for indoor LED displays viewed at very close range.
What are the brightness and refresh rate of the IFS-EIA1.8S-C?
The IFS-EIA1.8S-C offers brightness suited to indoor environments and a 3,840 Hz refresh frequency, supporting clear and smooth visual performance.
What is the size and resolution of the IFS-EIA1.8S-C LED module?
The module measures 320 × 160 mm and has a pixel resolution of 172 × 86 dots. It uses a 1R1G1B pixel configuration with SMD LED technology.
Where can the Dahua IFS-EIA1.8S-C be used?
The IFS-EIA1.8S-C is designed for indoor LED display applications requiring very fine pixel pitch, including control rooms, premium retail, conference rooms, broadcast studios and exhibitions.
Where can I buy the Dahua IFS-EIA1.8S-C in Dubai?
Elite Infotech LLC supplies the Dahua IFS-EIA1.8S-C LED module in Dubai, UAE. Contact the team to check product availability, pricing and requirements for your indoor LED display project.
