Dahua IFS-EOA5S-C P5 Outdoor LED Module
The Dahua IFS-EOA5S-C is a P5 outdoor LED module designed for large-format LED displays, digital signage and outdoor visual applications. Its modular design makes it suitable for building customized outdoor LED screen systems.

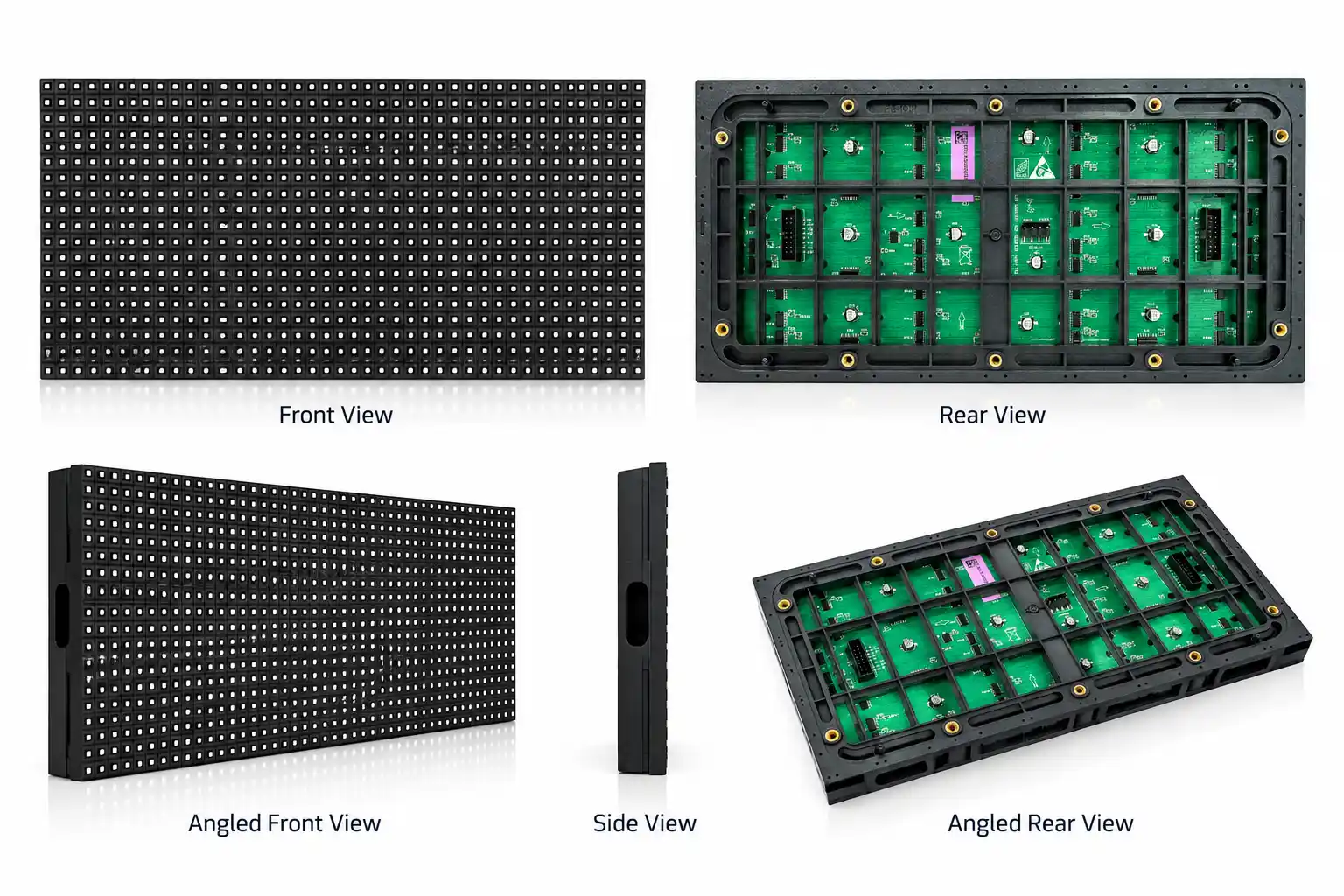

Dahua IFS-EOA5S-C LED Module
The Dahua IFS-EOA5S-C is a P5 outdoor LED module designed for large-format LED display systems. It is suitable for outdoor advertising, commercial displays, digital signage and other applications requiring a modular LED display solution.
With its compact module design, the IFS-EOA5S-C can be integrated into larger LED display structures according to the required screen dimensions and installation configuration.
Key Features of the Dahua IFS-EOA5S-C
P5 Pixel Pitch
The 5mm pixel pitch provides a suitable balance between image detail and viewing distance for outdoor LED display applications.
Outdoor LED Display Design
Designed for integration into outdoor LED display systems used for commercial, advertising and large-format visual applications.
High Refresh Rate
A high refresh rate supports smooth visual content and helps maintain clear display performance when screens are captured on camera.
High Brightness
The module is designed to provide the brightness required for outdoor LED display environments.
Point-by-Point Correction
Supports point-by-point correction to help maintain consistent brightness and color across the LED display.
Flame-Retardant Materials
Uses flame-retardant materials to support safety and reliability in outdoor LED display installations.
Consistent Image Performance
Brand lamp beads and the module’s design support consistent image quality across the assembled LED display.
Dahua IFS-EOA5S-C Technical Specifications
| Specification | Details |
|---|---|
| Model | IFS-EOA5S-C |
| Product Type | P5 Outdoor LED Module |
| Pixel Pitch | 5 mm |
| Module Size | 320 × 160 mm |
| Pixel Density | 40,000 dots/m² |
| LED Specification | SMD 1921 |
| Pixel Resolution | 64 × 32 dots |
| Pixel Configuration | 1R1G1B |
| Module Weight | 0.44 kg/pcs |
| Viewing Angle | 120° H / 120° V |
| Maximum Brightness | 5,000 nits |
| Working Voltage | DC 5V |
| Maximum Power Consumption | 40W |
| Refresh Frequency | 3,840 Hz |
| Operating Environment | Outdoor |
| Working Temperature | -20°C to +50°C |
| Working Humidity | 10–65% RH |
| Storage Temperature | -20°C to +60°C |
| Storage Humidity | 10–65% RH |
Applications of P5 Outdoor LED Module
Outdoor Advertising Screens
Suitable for large LED advertising screens used to display promotional campaigns, brand messages and commercial content.
Commercial LED Displays
Can be used for outdoor displays at shopping centers, retail locations, corporate properties and commercial spaces.
Building LED Displays
Suitable for integrating LED screens into commercial buildings and architectural structures for branding, advertising and visual communication.
Event & Entertainment Displays
Can be used in outdoor event venues, stages and entertainment applications requiring large-format LED visuals.
Public Information Displays
Suitable for digital signage installations where outdoor visibility and large-format content presentation are required.
Outdoor Digital Signage
Can be integrated into outdoor information screens for announcements, directions, schedules and other public-facing content.
Dahua IFS-EOA5S-C Supplier in Dubai, UAE
Elite Infotech LLC supplies the Dahua IFS-EOA5S-C P5 outdoor LED module in Dubai, UAE for businesses, contractors, system integrators and LED display projects.
The IFS-EOA5S-C can be integrated into large-format outdoor LED displays for advertising, commercial signage, digital communication and other visual display applications. Our team can help you select the appropriate LED module based on your required screen size, viewing distance, installation environment and application.
Contact Elite Infotech LLC to check product availability, pricing and requirements for your LED display project.
Get the Dahua IFS-EOA5S-C in Dubai, UAE
Looking for the Dahua IFS-EOA5S-C P5 outdoor LED module in Dubai, UAE? Share your required screen size, application and installation location with our team.
Elite Infotech LLC can help you check product availability, pricing and the suitable LED display configuration for your project.
Get In Touch With Us!
Phone
Address
Elite Infotech LEDscreens in dubai 69H7+H7F – Umm Ramool – Dubai – United Arab Emirates
Get Quote Now
F.A.Q.
Frequently Asked Questions
The Dahua IFS-EOA5S-C is a P5 outdoor LED module designed for integration into large-format outdoor LED display systems.
The IFS-EOA5S-C has a 5mm pixel pitch, making it suitable for outdoor LED displays where P5 resolution is required.
The module can be integrated into outdoor advertising screens, commercial LED displays, digital signage, building displays and event screens.
Yes. The IFS-EOA5S-C is designed for outdoor LED display applications and can be used in large-format display installations.
Yes. Its modular design allows it to be incorporated into LED display systems configured according to the required screen dimensions and installation requirements.
You can contact Elite Infotech LLC in Dubai, UAE to check availability, pricing and requirements for the Dahua IFS-EOA5S-C P5 outdoor LED module.
