Dahua IFS-EOA10S-C P10 Outdoor LED Module
The Dahua IFS-EOA10S-C is a P10 outdoor LED module designed for large-format LED display applications. It features a 10 mm pixel pitch, 320 × 160 mm module size, 10,000 dots/m² pixel density, 5,000 nits maximum brightness and a 3,840 Hz refresh rate for clear and consistent outdoor display performance.

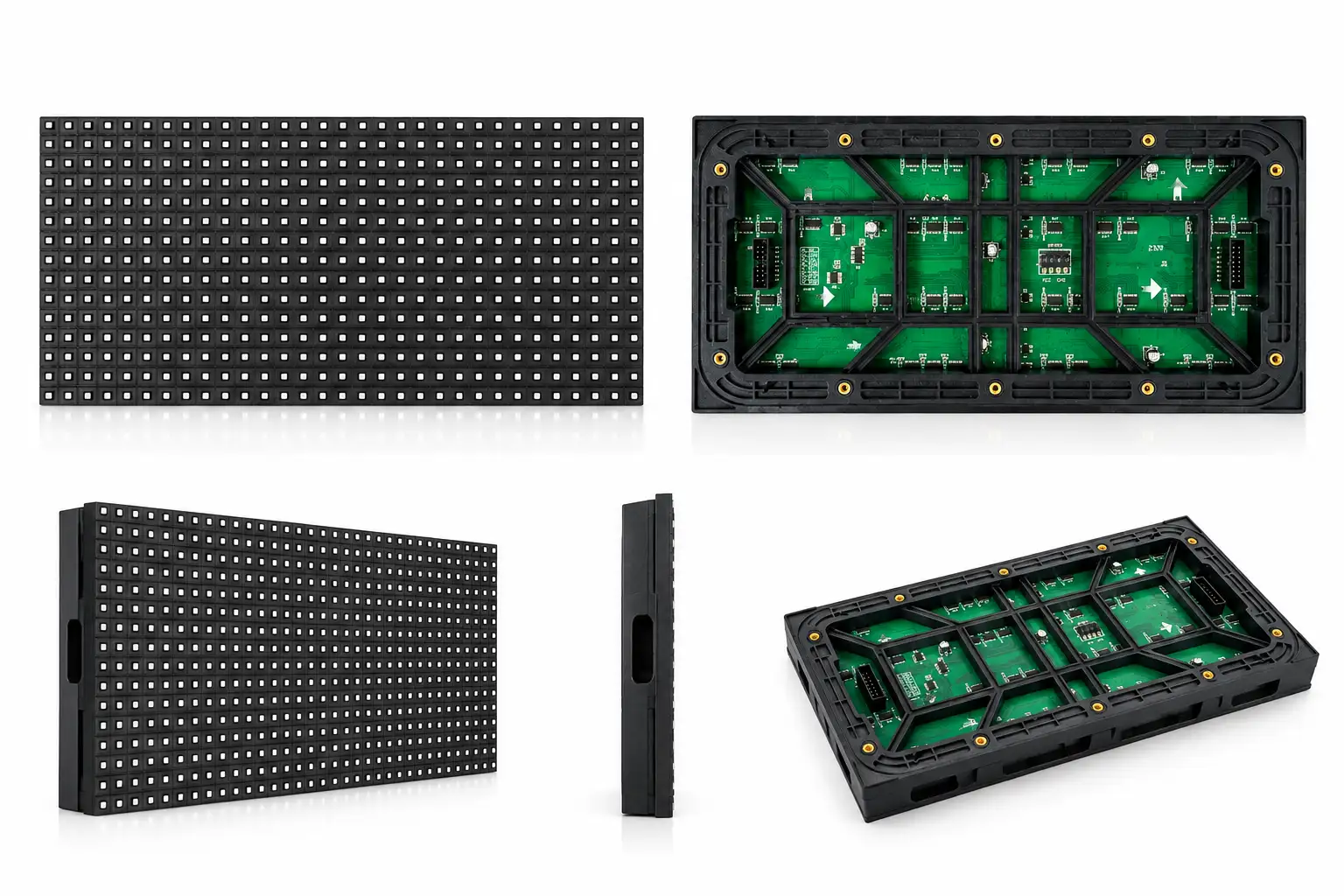

Dahua IFS-EOA10S-C LED Module
The Dahua IFS-EOA10S-C is a P10 outdoor LED module designed for large-format digital display installations. Its 10 mm pixel pitch and 10,000 dots/m² pixel density make it suitable for outdoor LED screens viewed from longer distances.
Module uses SMD 3535 LEDs with a 32 × 16 pixel resolution and 1R1G1B configuration. It also provides a wide viewing angle and supports point-by-point correction to help maintain consistent brightness and colour across the display.
Key Features of Dahua IFS-EOA10S-C
10mm Pixel Pitch
The 10 mm pixel pitch is suitable for large-format outdoor LED displays where viewers are positioned at longer distances.
5,000 Nits Maximum Brightness
The module provides up to 5,000 nits maximum brightness for high-visibility outdoor LED display applications.
3,840Hz Refresh Rate
A 3,840 Hz refresh rate supports smooth visual reproduction for dynamic content and video displayed on LED screens.
SMD 3535 LED Technology
The IFS-EOA10S-C uses SMD 3535 LEDs with a 1R1G1B configuration for full-colour LED display applications.
10,000 Dots/m² Pixel Density
The 10,000 dots/m² pixel density provides the pixel configuration required for P10 large-format LED displays.
Wide Viewing Angle
A 120° horizontal and vertical viewing angle helps maintain clear visibility across a broad viewing area.
Point-by-Point Correction
Point-by-point correction helps improve brightness and colour uniformity across the LED display.
Outdoor LED Module
The IFS-EOA10S-C is designed for outdoor LED display applications and large-format installations.
Dahua IFS-EOA10S-C Technical Specifications
| Specification | Details |
|---|---|
| Model | IFS-EOA10S-C |
| Product Type | P10 Outdoor Full-Color LED Module |
| Pixel Pitch | 10mm |
| Module Size | 320 × 160mm |
| Pixel Density | 10,000 dots/m² |
| LED Specification | SMD 3535 |
| Pixel Resolution | 32 × 16 dots |
| Pixel Configuration | 1R1G1B |
| Module Weight | 0.44kg ± 0.02kg |
| Best Viewing Distance | ≥10m |
| Viewing Angle | 120° ±10° H / 120° ±10° V |
| Brightness | ≥5,000 cd/m² |
| Working Voltage | DC 5V |
| Maximum Power Consumption | ≤40W |
| Driving Device | Constant Current Driver |
| Drive Type | 1/2 Scanning |
| Refresh Frequency | ≥3,840Hz |
| Operating Environment | Outdoor |
Applications of Dahua P10 LED Modules
Outdoor Advertising Screens
Large LED advertising displays for commercial campaigns, promotions and outdoor brand communication.
Commercial LED Displays
Outdoor LED displays for businesses, commercial properties and customer communication.
Building LED Displays
Large-format LED installations integrated into suitable building structures and commercial spaces.
Event & Entertainment Displays
Outdoor LED screens for events, entertainment venues and large audience environments.
Public Information Displays
Large outdoor digital displays for public information, announcements and communication.
Outdoor Digital Signage
High-brightness LED displays for locations where digital content needs to remain visible over longer viewing distances.
Dahua IFS-EOA10S-C Supplier in Dubai, UAE
Elite Infotech LLC supplies the Dahua IFS-EOA10S-C LED module in Dubai, UAE for businesses, contractors, system integrators and LED display projects.
The IFS-EOA10S-C can be used as part of a complete outdoor LED display configuration. We can help you determine the appropriate module and screen configuration based on the required screen size, pixel pitch, viewing distance, brightness and installation environment.
Looking for the Dahua IFS-EOA10S-C in Dubai? Contact Elite Infotech LLC for product availability, pricing, and project requirements.
Get Dahua IFS-EOA10S-C in Dubai
Looking for the Dahua IFS-EOA10S-C P10 LED module in Dubai, UAE? Share your required screen size, installation location and application with our team. We can help you determine the appropriate LED display configuration for your project.
Share your required screen size, installation location and application, and our team can help you determine the appropriate LED display configuration.
Get In Touch With Us!
Phone
Address
Elite Infotech LEDscreens in dubai 69H7+H7F – Umm Ramool – Dubai – United Arab Emirates
Get Quote Now
F.A.Q.
Frequently Asked Questions
The Dahua IFS-EOA10S-C is a P10 outdoor LED module designed for large-format outdoor LED displays. It features a 10 mm pixel pitch, SMD 3535 LEDs, 320 × 160 mm module size and 10,000 dots/m² pixel density.
The Dahua IFS-EOA10S-C has a 10 mm pixel pitch (P10). This makes it suitable for large outdoor LED displays where content is typically viewed from longer distances.
The IFS-EOA10S-C has a maximum brightness of 5,000 nits and a 3,840 Hz refresh frequency, supporting clear and smooth visual performance for outdoor LED display applications.
The module measures 320 × 160 mm and has a pixel resolution of 32 × 16 dots. It uses a 1R1G1B pixel configuration with SMD 3535 LED technology.
The IFS-EOA10S-C is designed for outdoor LED display applications, including large-format advertising screens, commercial displays, building displays, public information displays and outdoor digital signage. Its outdoor operating environment and high brightness make it suitable for large display projects.
Elite Infotech LLC supplies the Dahua IFS-EOA10S-C LED module in Dubai, UAE. Contact the team to check product availability, pricing and requirements for your outdoor LED display project.
