Dahua IFS-EOA4S-C P4 Outdoor LED Module
The Dahua IFS-EOA4S-C is a P4 outdoor LED module designed for full-color LED displays, with a 4mm pixel pitch, 320 × 160mm module size and 62,500 dots/m² pixel density.

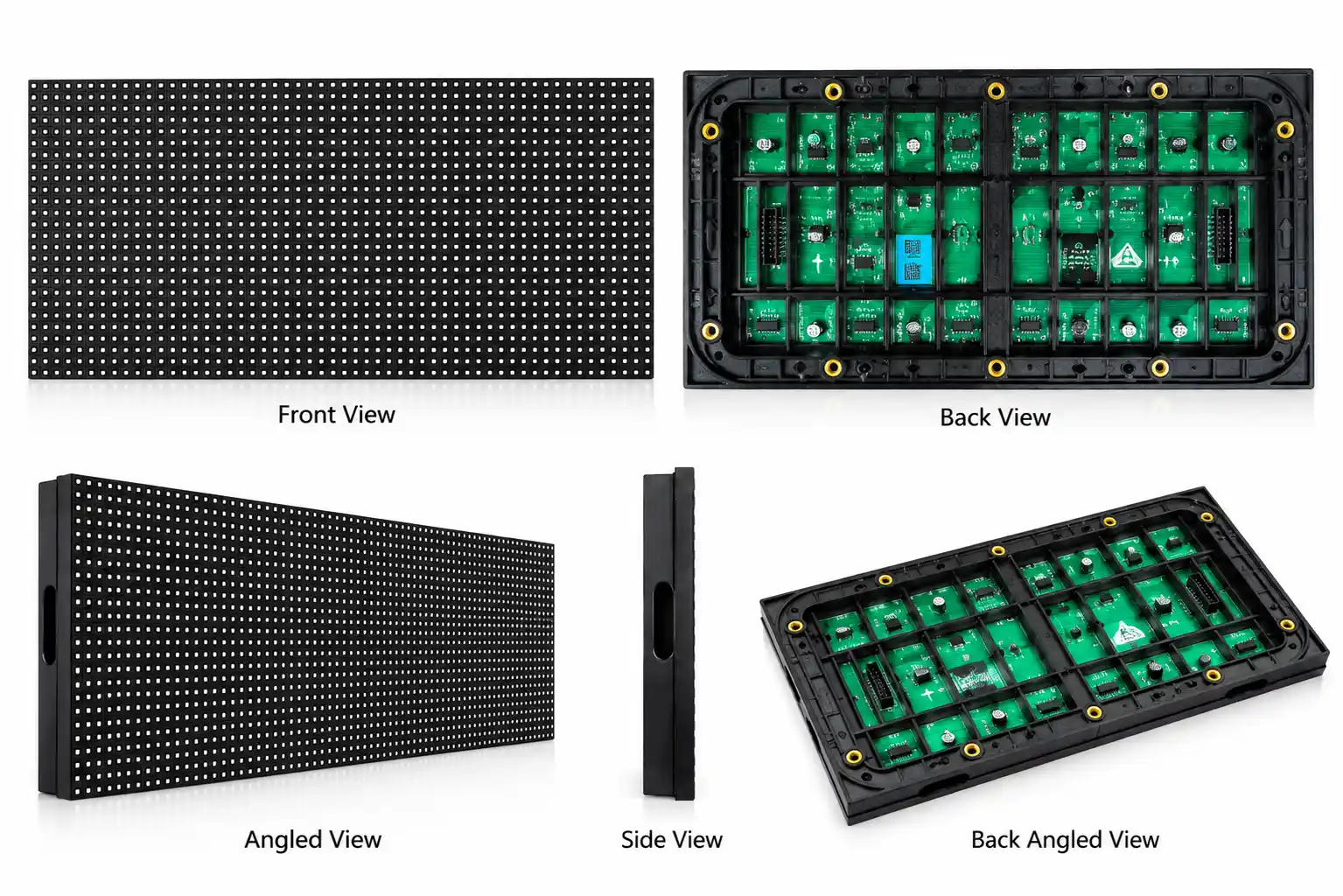

Dahua IFS-EOA4S-C LED Module
The Dahua IFS-EOA4S-C is a P4 outdoor full-color LED module designed for large-format LED display applications. It features a 320 × 160mm module size, 4mm pixel pitch and 62,500 dots/m² pixel density, providing a high-density configuration for outdoor LED displays.
Module uses SMD 1921 LED technology with an 80 × 40 pixel resolution and 1R1G1B pixel configuration. It is designed for outdoor operation and supports a viewing angle of up to 120° ±10° horizontally and vertically.
Key Features of Dahua IFS-EOA4S-C
4mm P4 Pixel Pitch
The 4mm pixel pitch provides a high-density configuration for detailed outdoor LED display content.
High Refresh Rate ≥ 3,840Hz
The module supports a refresh frequency of at least 3,840Hz for smooth display performance.
High Gray Scale
The product documentation specifies 12–14 bit gray scale, supporting fine and detailed image reproduction.
High Brightness
The IFS-EOA4S-C provides ≥4,500 cd/m² brightness, suitable for outdoor LED display environments.
Wide Viewing Angle
It supports a viewing angle of 120° ±10° horizontally and vertically, providing broad viewing coverage.
Point-by-Point Correction
The driving solution supports correction of brightness and color-related non-uniformity between modules.
High Contrast Performance
The product documentation states a contrast ratio of up to 5000:1, supporting clear separation between darker and brighter areas of the displayed image.
Outdoor Full-Color Design
The IFS-EOA4S-C is specified as a P4 outdoor full-color LED display module, making it suitable for large-format outdoor display systems.
Dahua IFS-EOA4S-C Technical Specifications
| Specification | Details |
|---|---|
| Model | IFS-EOA4S-C |
| Product Type | P4 Outdoor Full-Color LED Module |
| Module Size | 320 × 160 mm |
| Pixel Pitch | 4 mm |
| Pixel Density | 62,500 dots/m² |
| LED Specification | SMD 1921 |
| Pixel Resolution | 80 × 40 dots |
| Module Weight | 0.45 kg ± 0.02 kg |
| Best Viewing Distance | ≥ 4 m |
| Viewing Angle | 120° ± 10° H / 120° ± 10° V |
| Pixel Configuration | 1R1G1B |
| Brightness | ≥ 4,500 cd/m² |
| Working Voltage | 5V |
| Maximum Power Consumption | ≤ 40W |
| Driving Device | Constant Current Driver |
| Drive Type | 1/10 Scanning |
| Refresh Frequency | ≥ 3,840 Hz |
| Operating Environment | Outdoor |
| Working Temperature | -20°C to +60°C |
| Operating Humidity | 10–60% RH |
Applications of 4mm Outdoor LED Module
Outdoor Advertising Displays
Suitable for large-format LED advertising screens used to present promotional and commercial content.
Commercial LED Displays
Can be used for outdoor visual displays at commercial properties, retail locations and business premises.
Building LED Displays
Suitable for LED display installations integrated into building façades and other outdoor structures.
Event & Entertainment Displays
Suitable for outdoor event and entertainment installations requiring large-format full-color LED displays.
Public Information Displays
Can be integrated into outdoor screens used for public information and visual communication.
Outdoor Digital Signage
Can be used for outdoor digital signage displaying advertisements, announcements and other visual content.
Dahua IFS-EOA4S-C Supplier in Dubai, UAE
Elite Infotech LLC supplies the Dahua IFS-EOA4S-C P4 outdoor LED module in Dubai, UAE for businesses, contractors, system integrators and LED display projects.
The IFS-EOA4S-C is suitable for outdoor LED display systems where a P4 full-color LED module is required. Our team can help you determine the appropriate display configuration based on your screen dimensions, installation requirements and intended application.
Contact Elite Infotech LLC to check product availability, pricing and project requirements.
Get the Dahua IFS-EOA4S-C in Dubai, UAE
Looking for the Dahua IFS-EOA4S-C P4 outdoor LED module in Dubai, UAE? Share your required screen size, application and installation requirements with our team.
Elite Infotech LLC can help you check product availability, pricing and the suitable LED display configuration for your project.
Get In Touch With Us!
Phone
Address
Elite Infotech LEDscreens in dubai 69H7+H7F – Umm Ramool – Dubai – United Arab Emirates
Get Quote Now
F.A.Q.
Frequently Asked Questions
The Dahua IFS-EOA4S-C is a P4 outdoor full-color LED module designed for integration into large-format outdoor LED display systems.
The IFS-EOA4S-C has a 4mm pixel pitch, making it a P4 LED module for outdoor display applications.
The module can be integrated into outdoor advertising screens, commercial LED displays, digital signage, building displays and other full-color outdoor LED screen systems.
The product datasheet specifies a best viewing distance of 4 metres or more.
Yes. The IFS-EOA4S-C is a modular LED component that can be assembled into larger outdoor LED display configurations according to the required screen dimensions and system design.
Elite Infotech LLC supplies the Dahua IFS-EOA4S-C P4 outdoor LED module in Dubai, UAE. Contact the team to check product availability, pricing and requirements for your LED display project.
